Congratulations on your purchase of the CableMod Vertical PCI-e Bracket! In just a few steps, you’ll be able to mount your graphics card vertically inside your case.

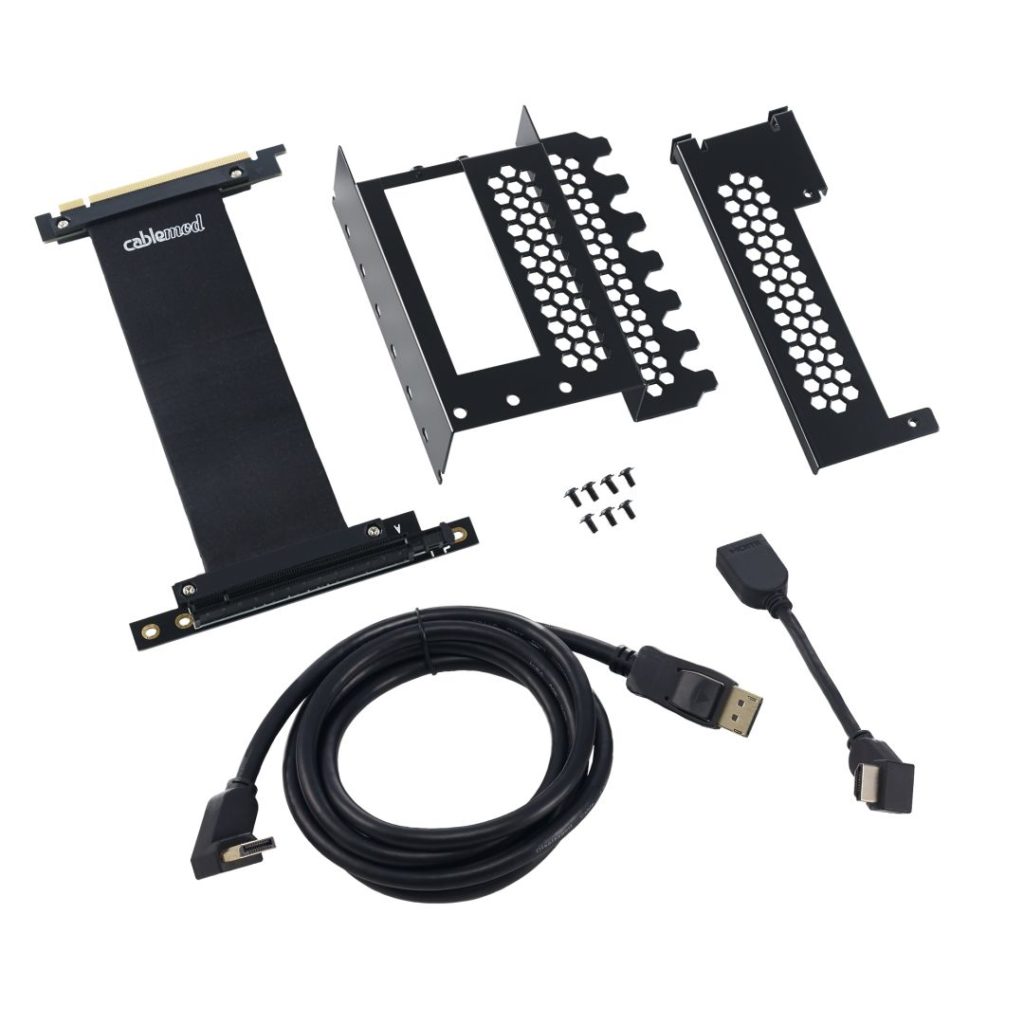

Before we begin, please make sure that you have all the included accessories inside your package:
STEP 1: Attached bottom bracket to side bracket. Secure with three screws.
STEP 2: Secure PCI-e riser cable to bottom bracket with two screws.
STEP 3: Install graphics card on PCI-e riser slot. Secure graphics card onto bracket with screws.
STEP 4: Connect DisplayPort and/or HDMI adapters, and route outside case via PCI-e slot.
STEP 5: Secure bracket to your case using your case screws, and connect the riser card to your motherboard’s PCI-e slot. You’re done!
